HDMI Extender 60 meter | MDHE60

The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

This kind of HDTV Extender By UPT CAT-6/6A uses single piece CAT-6/6A cable to extend the HDTV display up to 60 meters for 1080p, It not only break the limitation of the HDTV cable transmission length, but also CAT-6/6A has more flexibility and convenience in cable construction.

Connection and Operation:

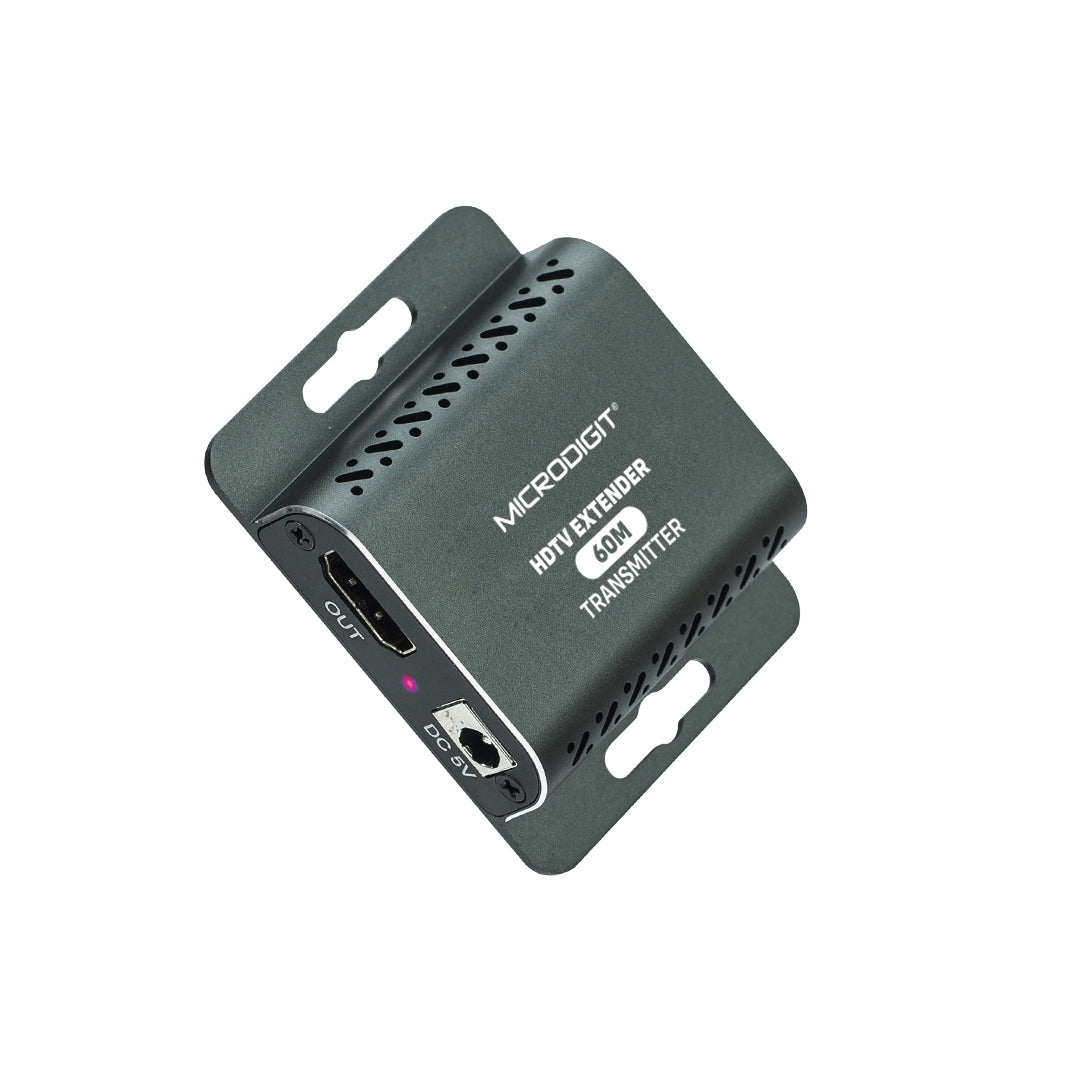

• Plug the fixed HDTV connector of the sender into the HDTV input source such as: HD-DVD, PS3, STB, etc...
• Connect a single CAT-6/6A cable to both the output of the transmitter and the input of the receiver.

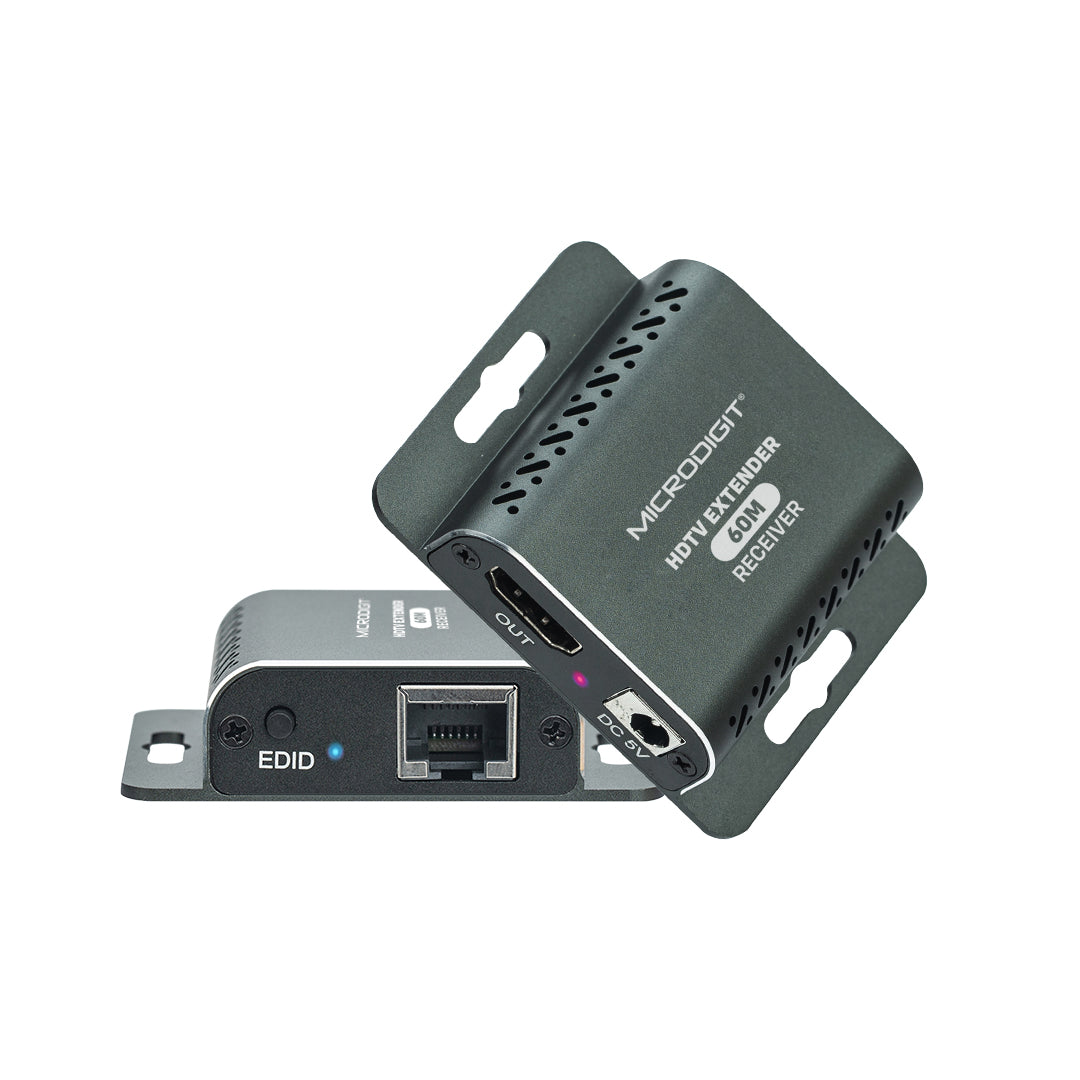

• Plug the fixed HDTV connector of the receiver into the HDTV display (@ch as: HD-LCD, HD-DLP).

This HDTV extender has many features that enable it to perform in a superior manner, among those features, you will find.

Features

• One pair as a full functional module, no need to set
• CAT-6/6A cable can substitute HDTV cable to achieve to long-distance transmission
• The LAN cable follows the standard of IEEE-568B
• The maximum length of the CAT6A network cable is up to 60M
• Compact size.1.9cm×2.6cmx6cm
• Signaling rate up to 2.5Gbps in support of 1080p display
• No need for an extra power supply
• Equipped with a Type-C charging cable, the Type-C port supplies power to the TX only
• Anti interference
• Pressure prevention
• Lightning protection
• Fire prevention
• High temperature resistance
• Plug and play
